To calibrate the scanner, take the following steps:

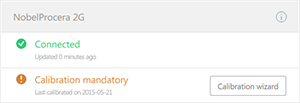

1. Left-click on the Scan center icon in the task bar. The following window pops up:
At the bottom you will find information on the calibration status of the scanner:
Message |
Description |
Calibrate within x days |
The scanner has to be calibrated within 30 days. |
Calibrate within x days |
The scanner has to be calibrated within 7 days. |
Calibration mandatory |
Calibration of the scanner was more than 30 days ago. |
Calibration invalid |
The check calibration has failed. |
Unknown calibration status |
The scanner is not connected. |
2. Click the Calibration wizard button to start the calibration.

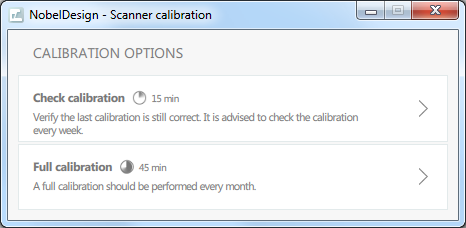

3. Now select the calibration option: Check calibration or Full calibration.
An icon indicates the estimated time required for the respective scan.
Note
The calibration wizard can also be started by right-clicking the Scan center icon in the notification area and selecting Calibrate.
